SKU: VT307-5DZ1-02F-F-Q

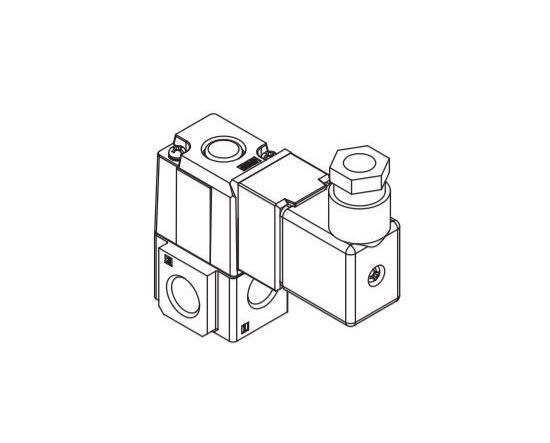

Solenoid Valve - VT307-5DZ1-02F-F-Q
- Regular price
- €66,64
- Sale price
- €66,64
- Regular price
-
This solenoid valve is suitable for Agfa Anapurna M, L and XL printers. Part number VT307-5DZ1-02F-F-Q, it replaces part number VT307-5G1-02-F.
Technical specifications:
- Body type: Body Ported
- Rated voltage: 24 VDC
- Allowable voltage fluctuation: –15 to +10% of rated voltage
- Electrical entry: DIN terminal with connector

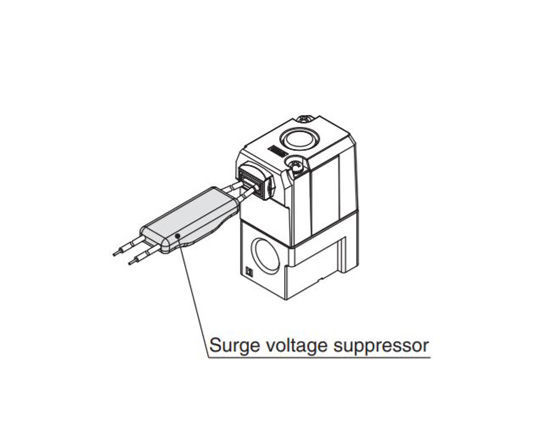

- Surge voltage suppressor included
- Port size: 1/4 (8A)
- Thread type: G
- With bracket
- CE compliant (electrical entry and surge voltage suppressor)
- Actuation type: Direct acting 2-position single solenoid
- Fluid: Air
- Operating pressure range: 0 to 1 MPa (high pressure type), 0 to 0.7 MPa (standard type)
- Ambient and fluid temperature: –10 to 50°C (no freezing)
- Response time: 20 ms or less (at 0.5 MPa)
- Maximum operating frequency: 10 Hz
- Lubrication: Not required (use ISO VG32 class 1 turbine oil, if lubricated)
- Manual override: Non-locking push type
- Mounting orientation: Unrestricted
- Impact/vibration resistance: 150/50 m/s²
- Enclosure: Dust-proof
Printer compatibility:
Agfa Anapurna L, Agfa Anapurna M, Agfa Anapurna XL, Dilli Neo Plus UVP-1606, Dilli Neo Plus UVP-2506, Dilli Neo Titan UVT-1606S, Mutoh Cobra S100UV, Mutoh Cobra S65UV
Product code: VT307-5DZ1-02F-F-Q
Manufacturer: Agfa
