SKU: S3DTF75
Summa S Class 3-DTF Bundle
- Regular price
- €10.770,20
- Sale price
- €10.770,20
- Regular price
-

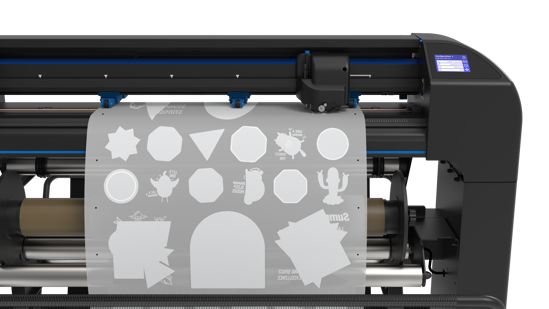

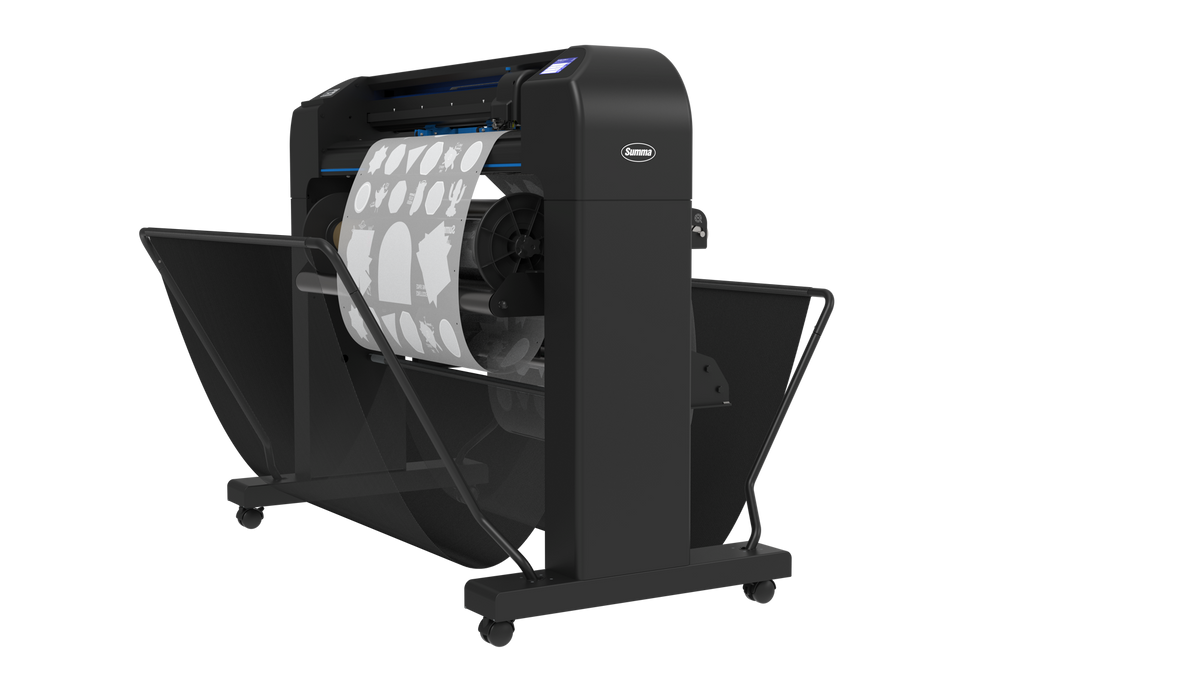

The Summa S Class 3-DTF Bundle is a cutting plotter designed specifically for DTF applications. The bundle includes the S3 TC75 cutting plotter, equipped with a friction-free roll feeder, a take-up system, and the GoSign Pro advanced pack. Designed to meet the specific challenges of cutting PET film, this bundle combines advanced technology and uncompromising precision, setting a new standard in the DTF workflow.
Designed with the user in mind
Cutting DTF film requires impeccable precision, low friction to avoid damaging the print, and maximum reliability. The Summa S Class 3-DTF Bundle has been selected to meet these requirements, offering an optimal solution for DTF materials.
The bundle includes:
- The S3 TC75 cutting plotter features the Performance Cutting Head. It is equipped with tangential cutting technology, the preferred choice for cutting PET film, as it is fast and incredibly precise.
- A friction-free roll feeder prevents damage during the cutting process by minimizing friction, avoiding contact between the media and the roll.
- A take-up system that effectively manages PET film and keeps it in roll format after cutting.
- The GoSign Pro Pack software is included in the bundle to unlock the full functionality of the S3 TC75's built-in camera. Furthermore, it can automate cutting processes using the automatic barcode recognition feature.
S3 TC75 cutting plotter technical specifications
- Model: S3 TC 75
- Dimensions: 141 x 69 x 111 cm
- Media width: 6 to 84 cm
- Maximum working width: 74.2 cm x 50 m 'Oversized' mode allows for a larger cutting area: +/- 7 cm
- Alignment type:
- OPOS X - OPOS Xtra
- Barcode job recognition
- Up to 2 x 64 marks on the X-line
- Y-line compensation
- OPOS - CAM (factory upgrade)
Tracking performance:
- 12 m maximum within guaranteed specifications for media under 760 mm
- 4 m maximum within guaranteed specifications for media over 760 mm
- Media thickness: 0.05 mm to 0.25 mm / Up to 1.2 mm with sandblast tangential knife
- Accuracy: 0.2% of movement or 0.25 mm, whichever is greater
- Speed: Up to 1440 mm/s diagonal
- Acceleration: Up to 4.2 G diagonal
- Knife pressure: Tangential knife: up to 1000 grams
- Other features: FlexCut (through-cut)
- Connectivity: Ethernet, USB, WIFI
- Power requirements: 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
- Software included: Summa GoSign Software, Summa Cutter Control / Plugin: Illustrator, CorelDraw, MacSign
- Cutting technology: Tangential knife
Click here to calculate your return on investment.
Product code: S3DTF75
Manufacturer: Summa
For dedicated assistance, you can contact us directly via email at orders@zsupplies.eu and by phone at 393 706 1020 / 011 0376636. We will respond as soon as possible to help you with your request!
